MWC-2 Wire Counter Unit

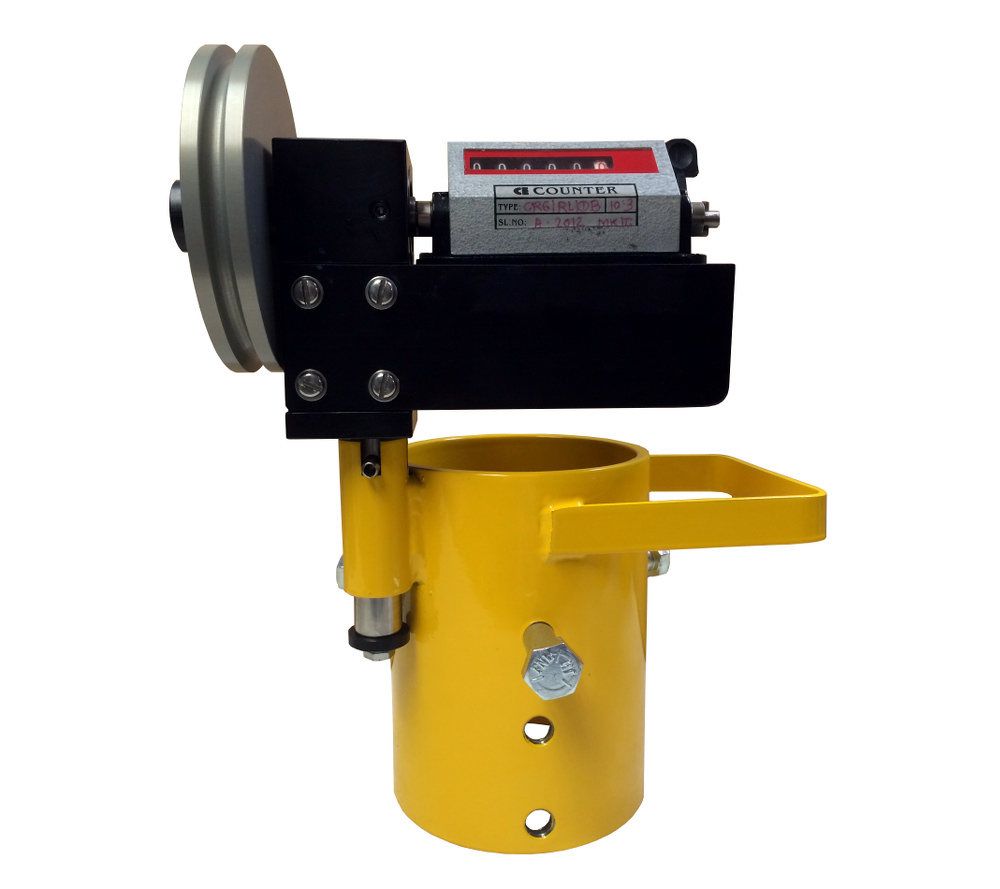

The MWC-2 wire counter is a simple, portable wire counter unit for measuring the length of cable deployed down a drill hole. It attaches to the drill collar by three equally spaced clamping bolts and fits on drill collars that are 89mm/3.5in diameter or smaller (e.g. NQ or smaller boreholes).

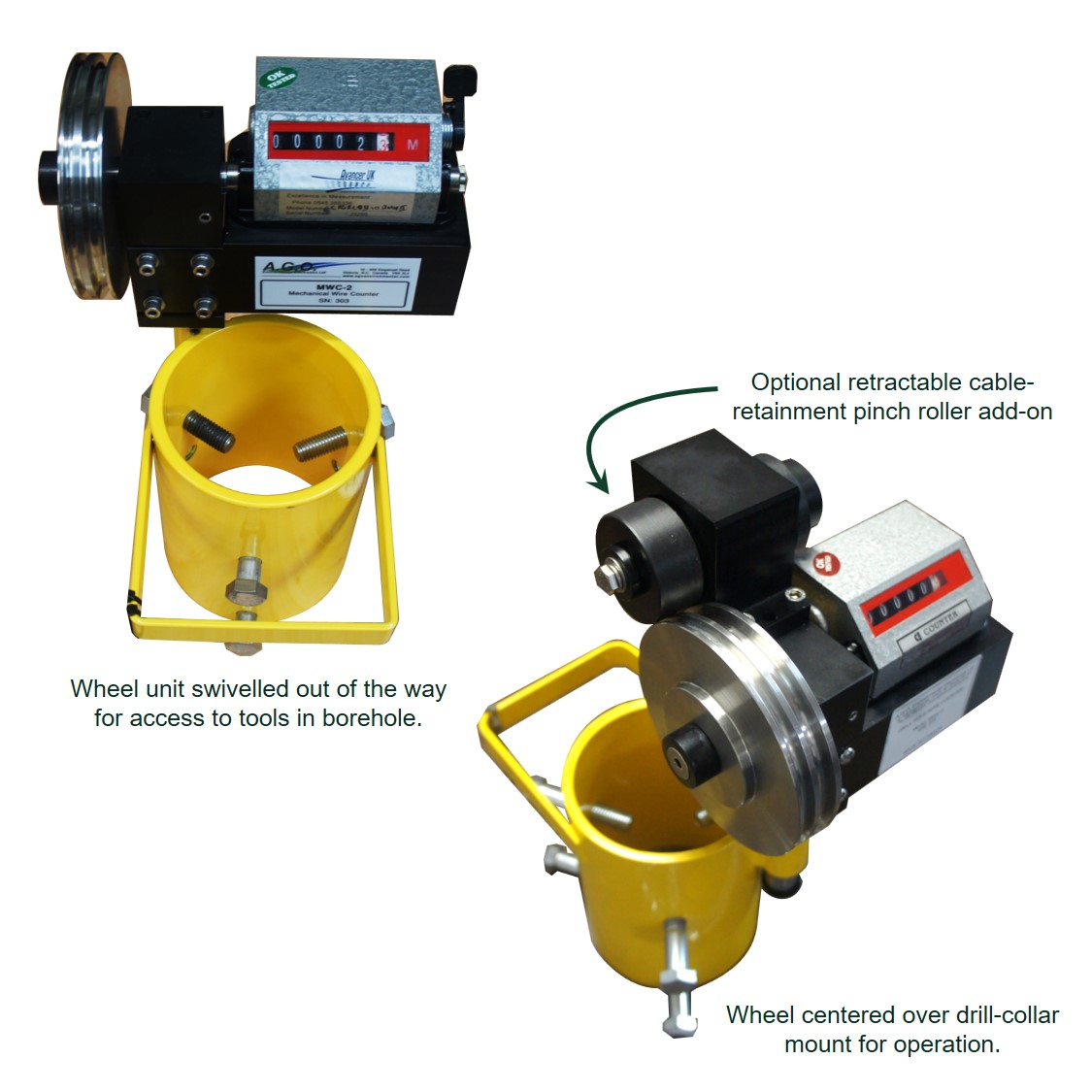

The wheel unit can be easily swiveled out of the way for clear access to tools in the borehole. It includes a built-in carrying handle and can optionally be outfitted with a cable-retainment pinch roller.
Wheel specs
Only compatible with cables that can tolerate dynamic bend diameters of 10.6cm (4.173in) or less.
Can be machined with one, two, or three grooves, all for varying cable diameters if needed.
Available materials: Stainless steel 304 or anodized aluminum
Unit specs
Typical weight: ~10lbs (4.5kg)
Counting units: Meters
Resolution: Decimeters (0.1m)
Max count: 99,999.9m
Max total tension over wheel: 250lbs (113kg)
