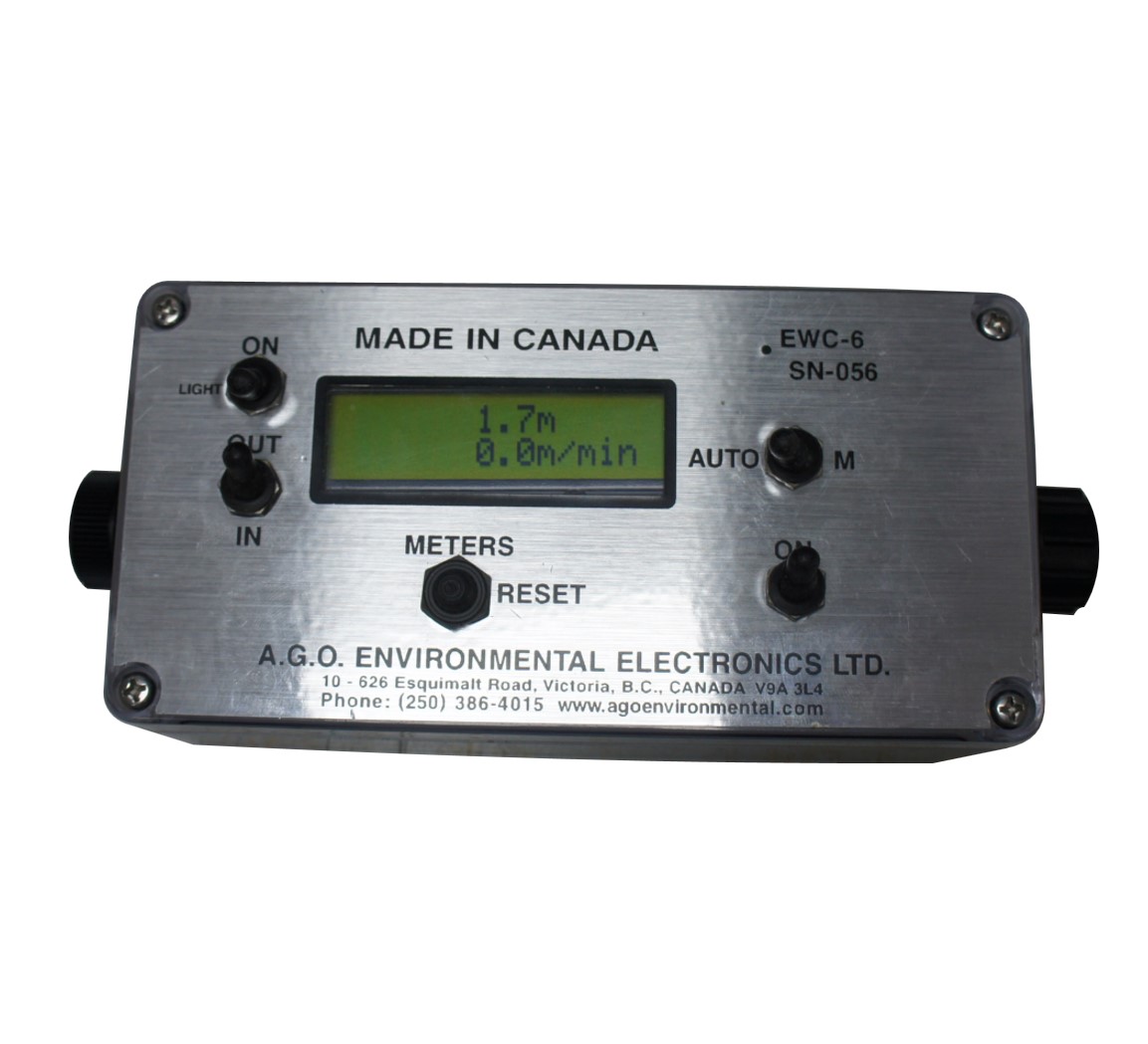

EWC-6 Wire Counter Unit

The EWC-6 is a simple, lightweight, self-powered, handheld wire payout meter display unit for use with A.G.O.’s matching magnetically-encoded sheaves, pulleys, and wheels.

It connects to encoded wheels via a cable.  Standard length is 5m; longer lengths available up to 30m (100ft) or more.  Wireless connection options are not available or being planned at this time.

The EWC-6 can be connected to a computer’s USB port to output a continuous stream of data or to calibrate it for use with different cable sizes.

Wire counting specs

Display values:  Length paid out + line speed

Units:  meters or ft (updateable by connecting unit to computer)

Max count:  +/- 4999.9 units (m or ft)

Resolution:  0.1m (0.328ft = 3.9″)

Physical details

Dimensions:  55mmH x 160mmL x 80mmW (2.17″H x 6.3″L x 3.15″W)

Weight (sans cables):  0.5kg (1lb)

Power:  1 internal 9V battery, or can be powered externally by 12VDC

Battery life:  90hrs (backlight off) / 20hrs (backlight on)

Data output and calibration

Standard computer connection interface:  USB

Optional alternative connection interface:  Serial RS232/485 (extra fee)

Data stream format:  NMEA sentence $YXXDR,D,301.2,M,L,S,30.0,M,R*24[CR][LF] (refer to product literature for details)

Known software compatibilities:  Klein SonarPro® side scan sonar software

What's in the box

Each EWC-6 purchase includes a rugged Pelican-style carrying case with…

  • 9V battery
  • 1m (3.3ft) long USB cable
  • Spare magnet and magnet sensor for encoded wheel

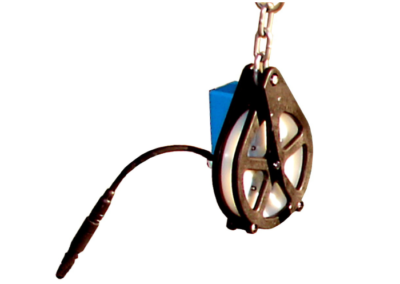

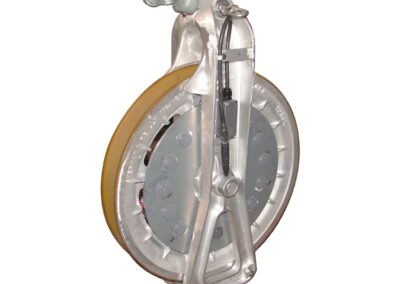

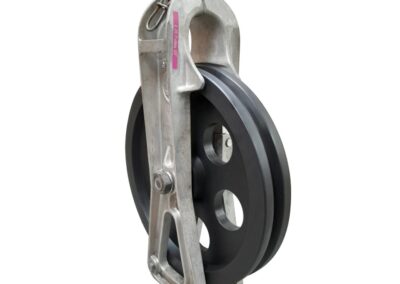

Encoded Wheels

The EWC-6 must be paired with a compatible encoded wheel to function.  Choose an option from the following encoded wheel series to suit your needs.
