AGO-SR08 slip rings

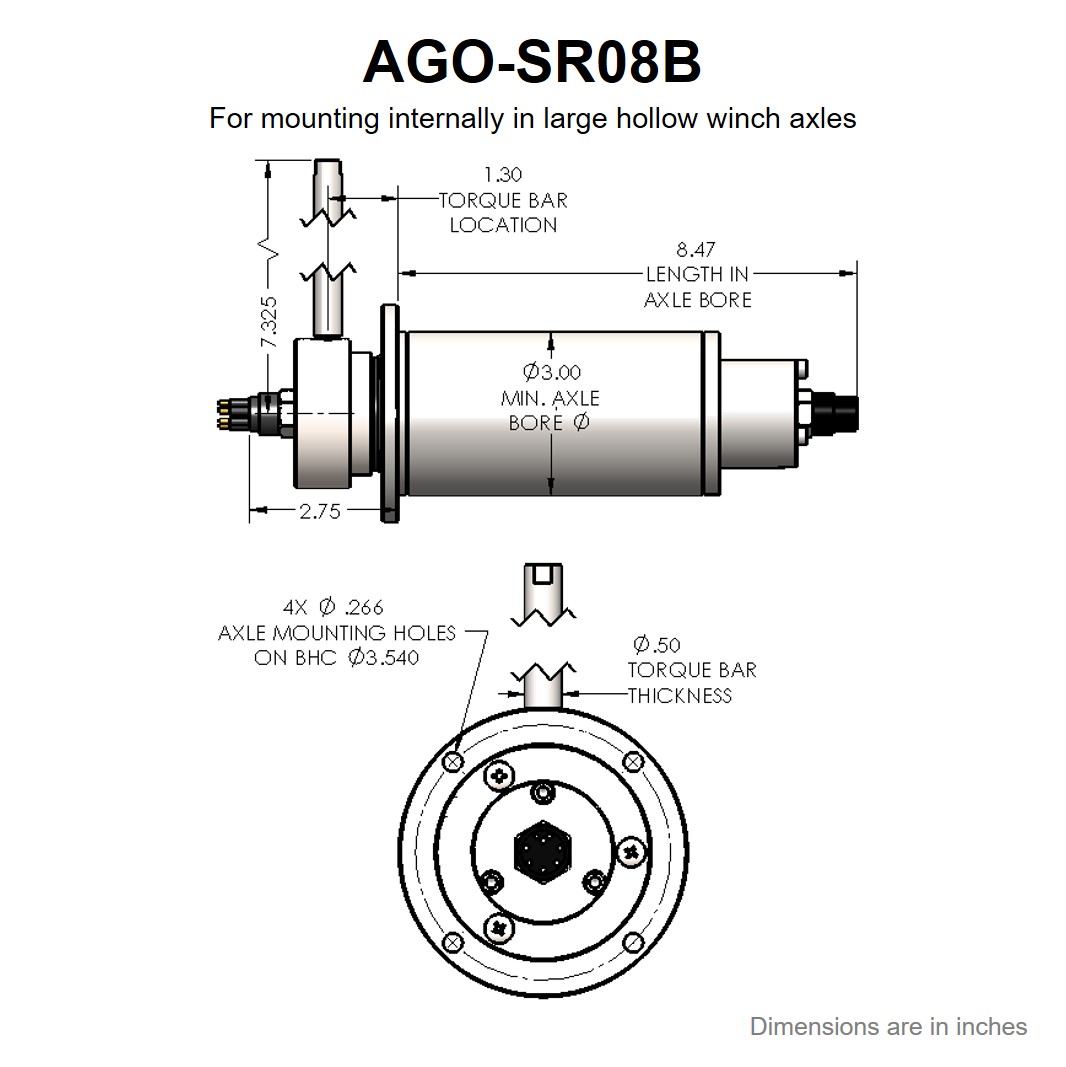

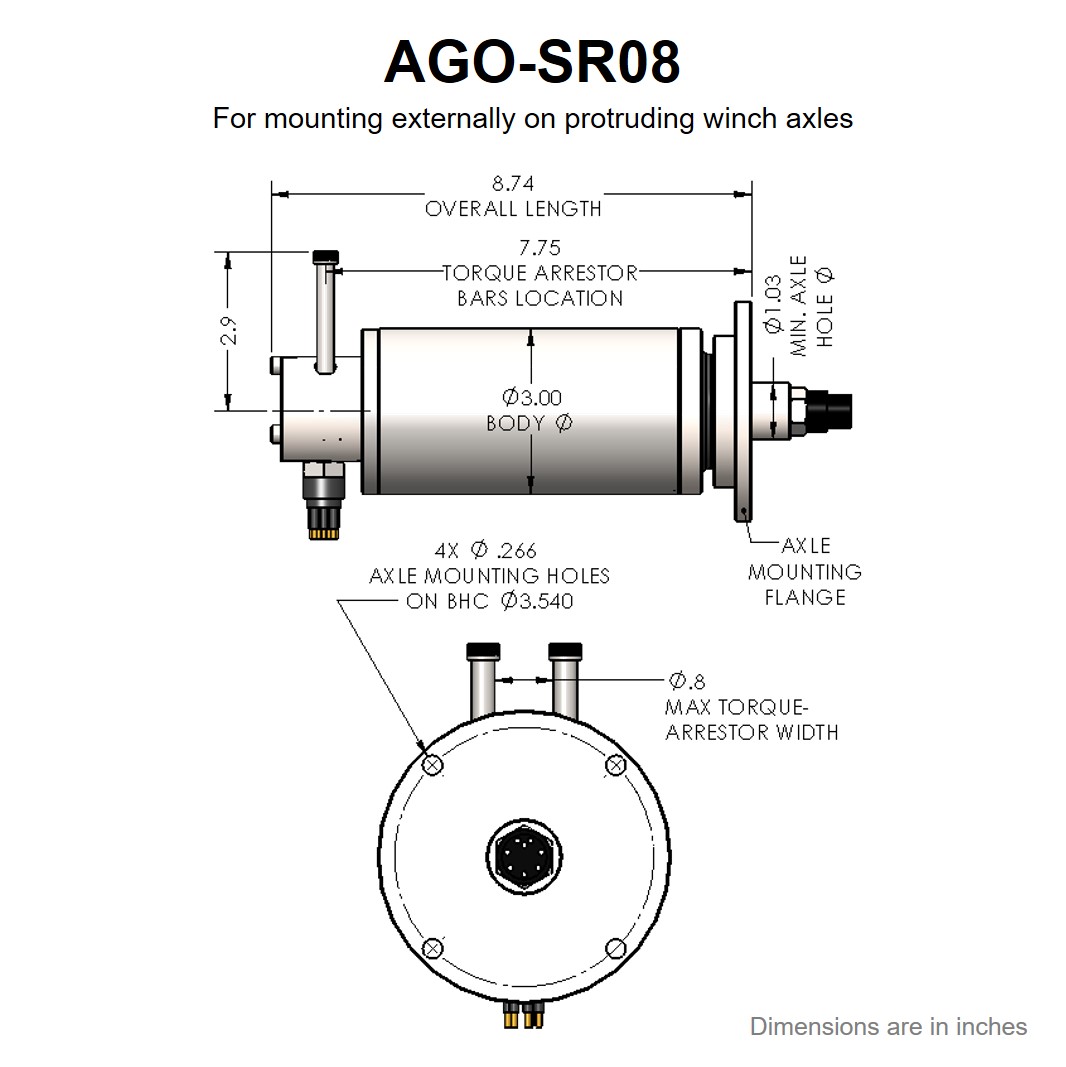

The AGO-SR08 slip ring model comes in both an external flange mount (SR08) and an in-bore configuration (SR08B). It is a robust slip ring assembly with a stainless steel splash-proof housing, internal 8-conductor slip ring module, and MCBH-8 connectors.
General specs
# of conductors: 8 standard (12 max, when outfitted w/ matching 12-pin connectors)
Standard connectors: MCBH-8F (drum side), MCBH-8M (deck side)
Max rated voltage per conductor: 240VAC / 240VDC
Max rated current per conductor: 5A
Max operating speed: 500rpm
Working temperature range: -20°C to +80°C (-4°F to +176°F)
Weight: 4.5kg (10lbs)
