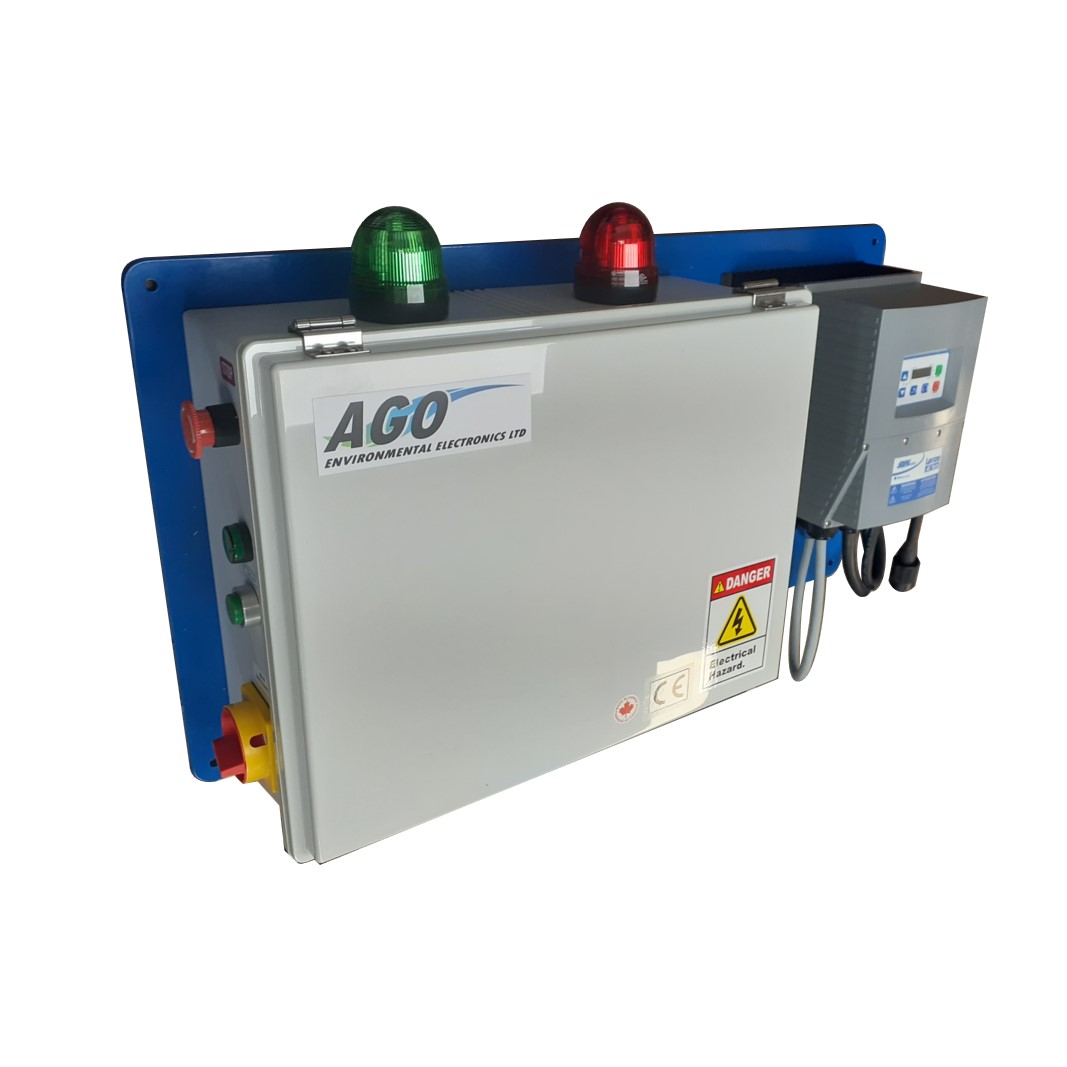

Wall-Mount 5HP Electrical System for Smaller Winches

Sometimes winch applications require a relatively small drum and winch to fit their required cable capacity, but their load and/or speed requirements demand a drivetrain with a 5HP motor.

Unfortunately, the electronics for 5HP systems are considerably bigger than those for 3HP and below systems, and cannot be made to fit neatly on winches smaller than a CSW-10.  For these cases, we offer the option for a wall-mounted electrical system separate from the winch.

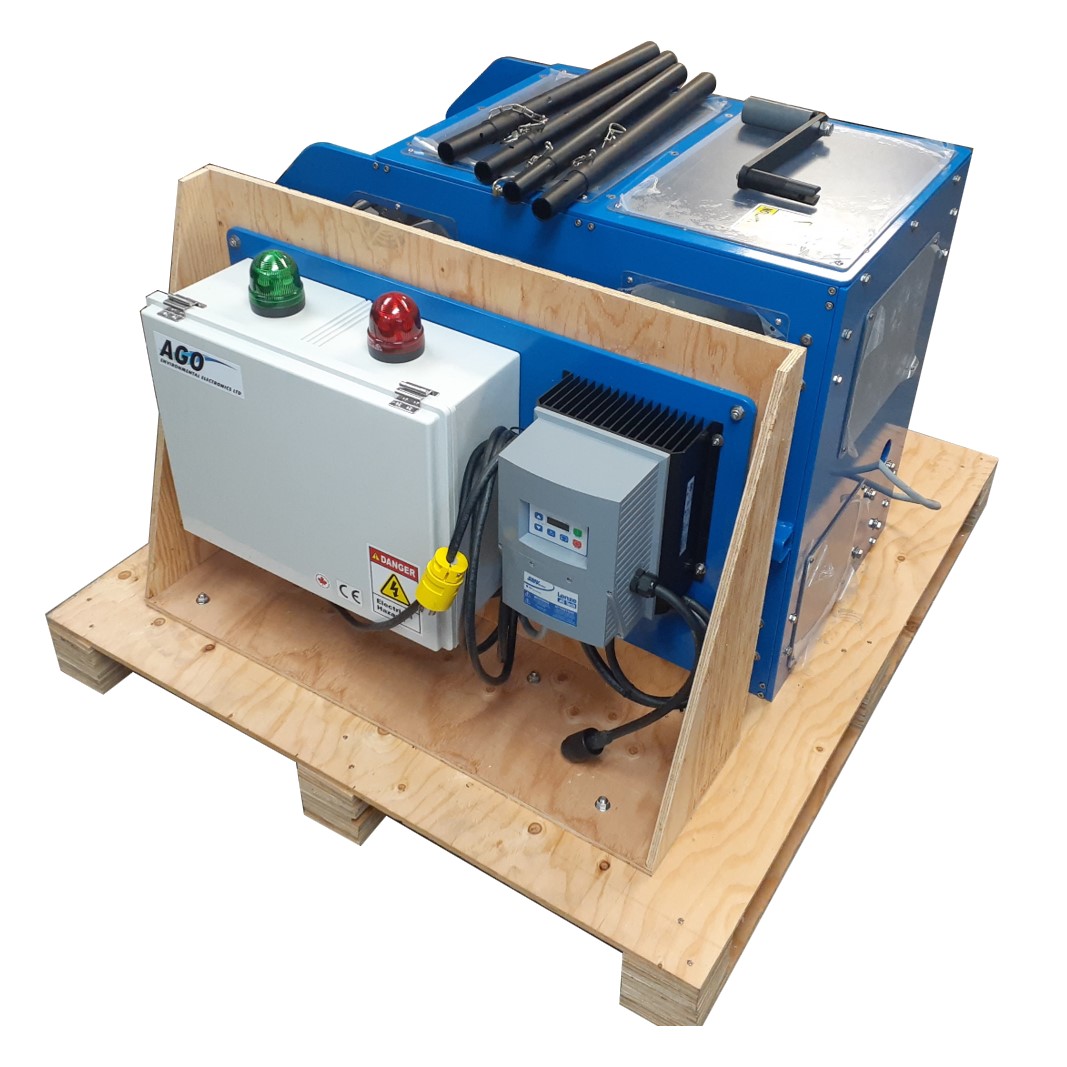

As long as the use site has wall space available to mount the electrical system panel, users can reap the benefits of a strong and fast 5HP electrical system combined with a compact winch.
