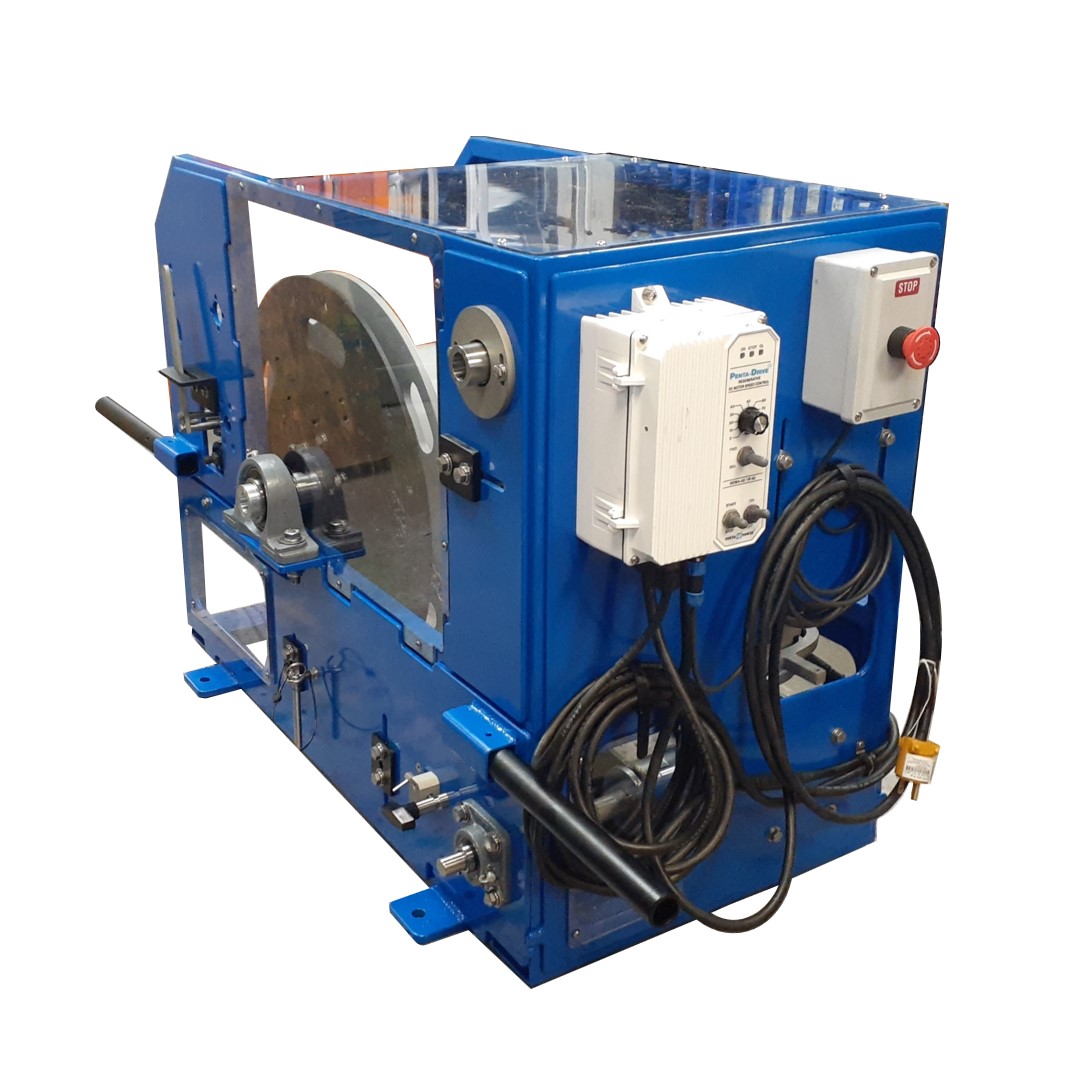

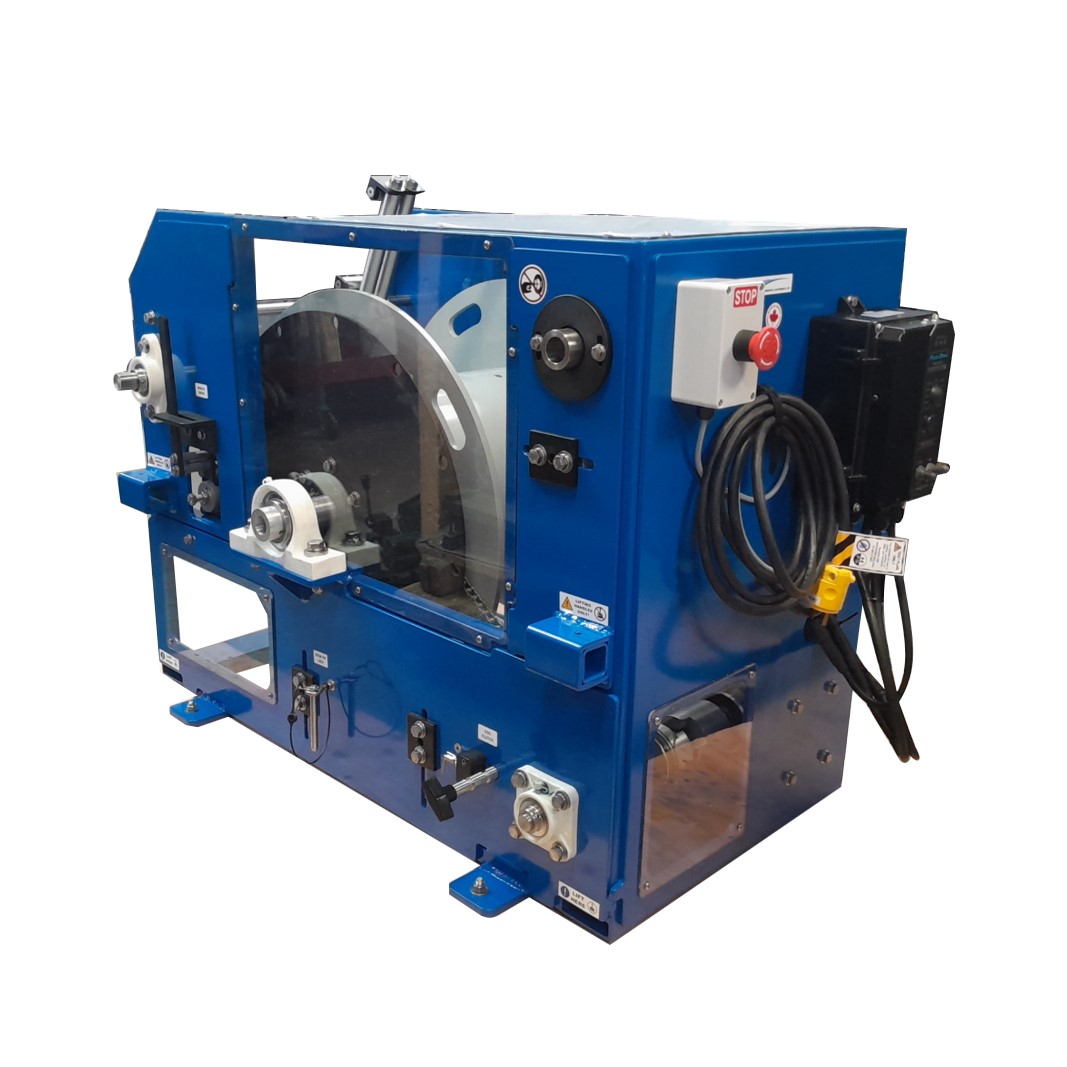

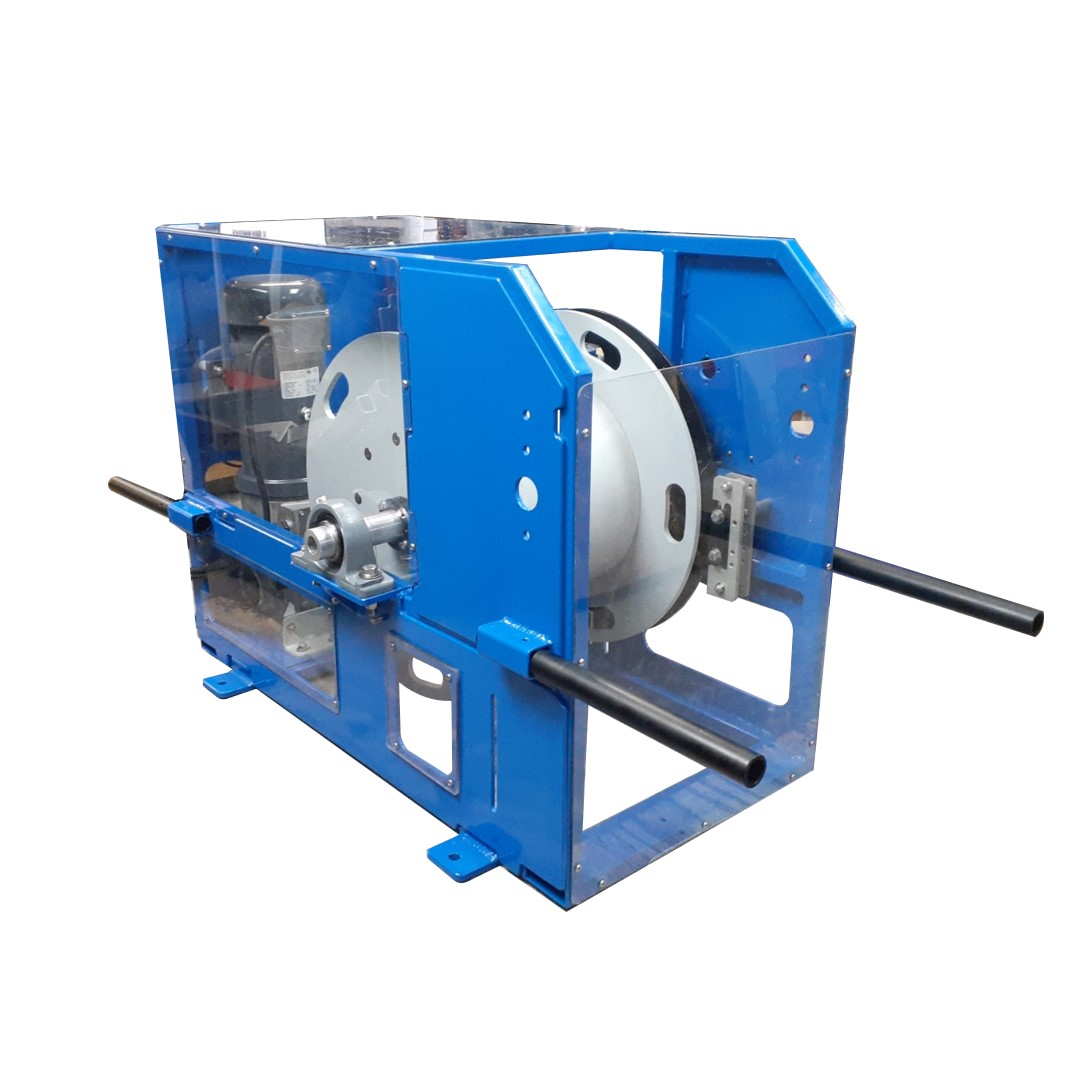

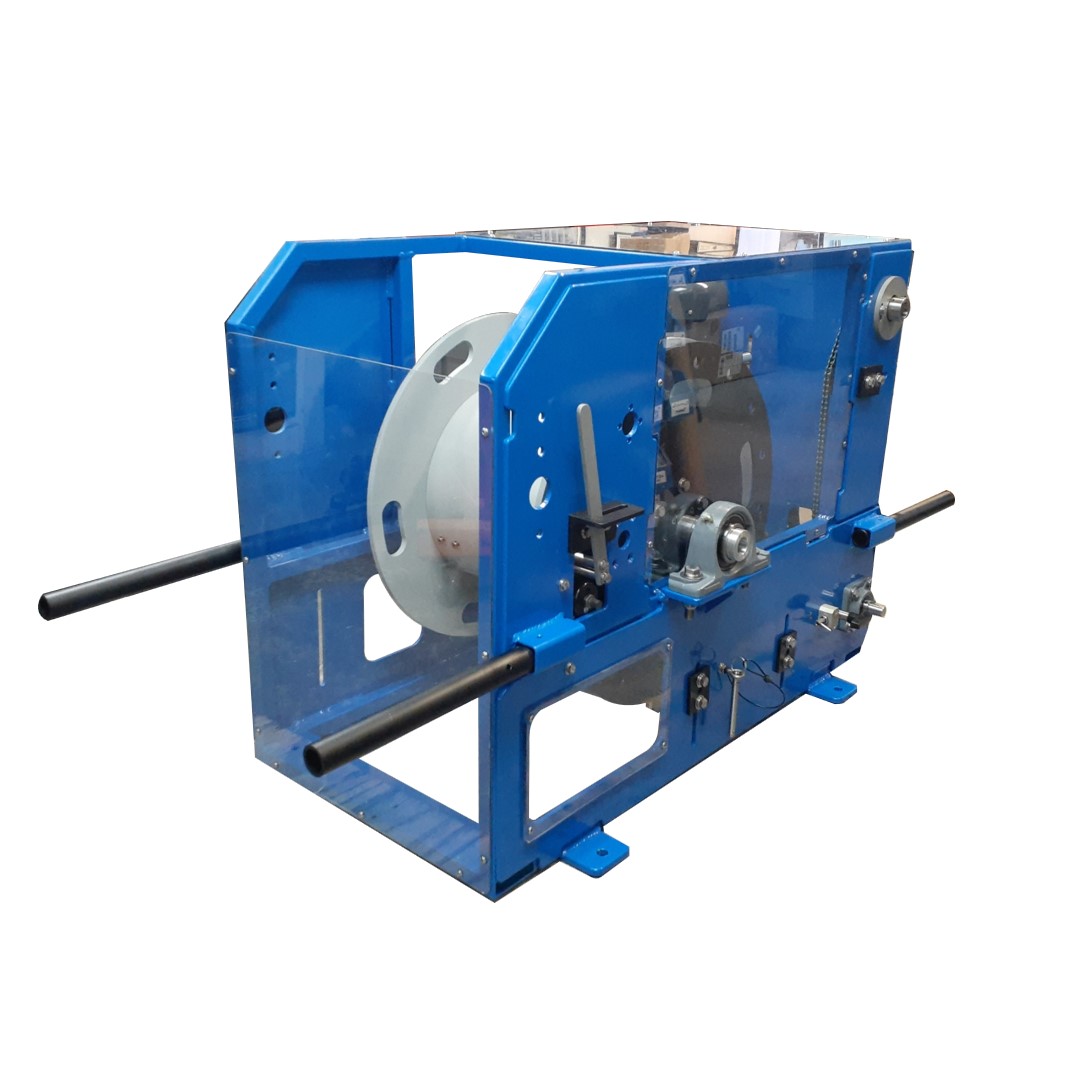

Rockland Scientific PID-02 winch

The Rockland Scientific PID-02 is configured to handle Rockland’s VMP-250 turbulence profiling instrument with up to 1000m of 6mm rope or 1700m of 5mm 4-conductor cable.

Rockland Scientific VMP-250

Base winch features:

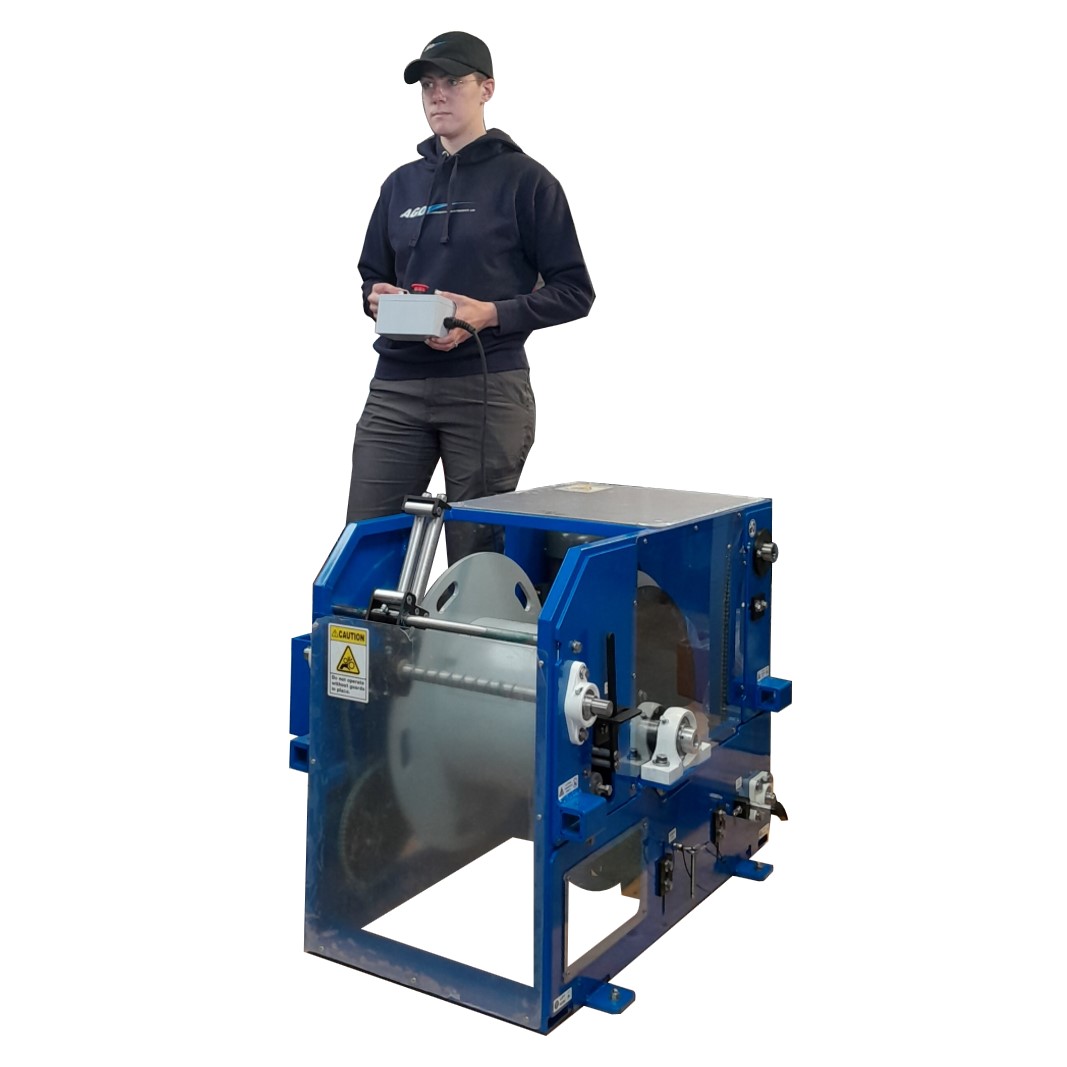

    • Handheld wired remote “simple” controller (E-stop + speed knob + FWD/REV direction control switch) w/ 3m cable to winch
    • Sprocket-assisted manual backup auxiliary drivetrain for easier manual recovery of heavy payloads

Optional add-on features:

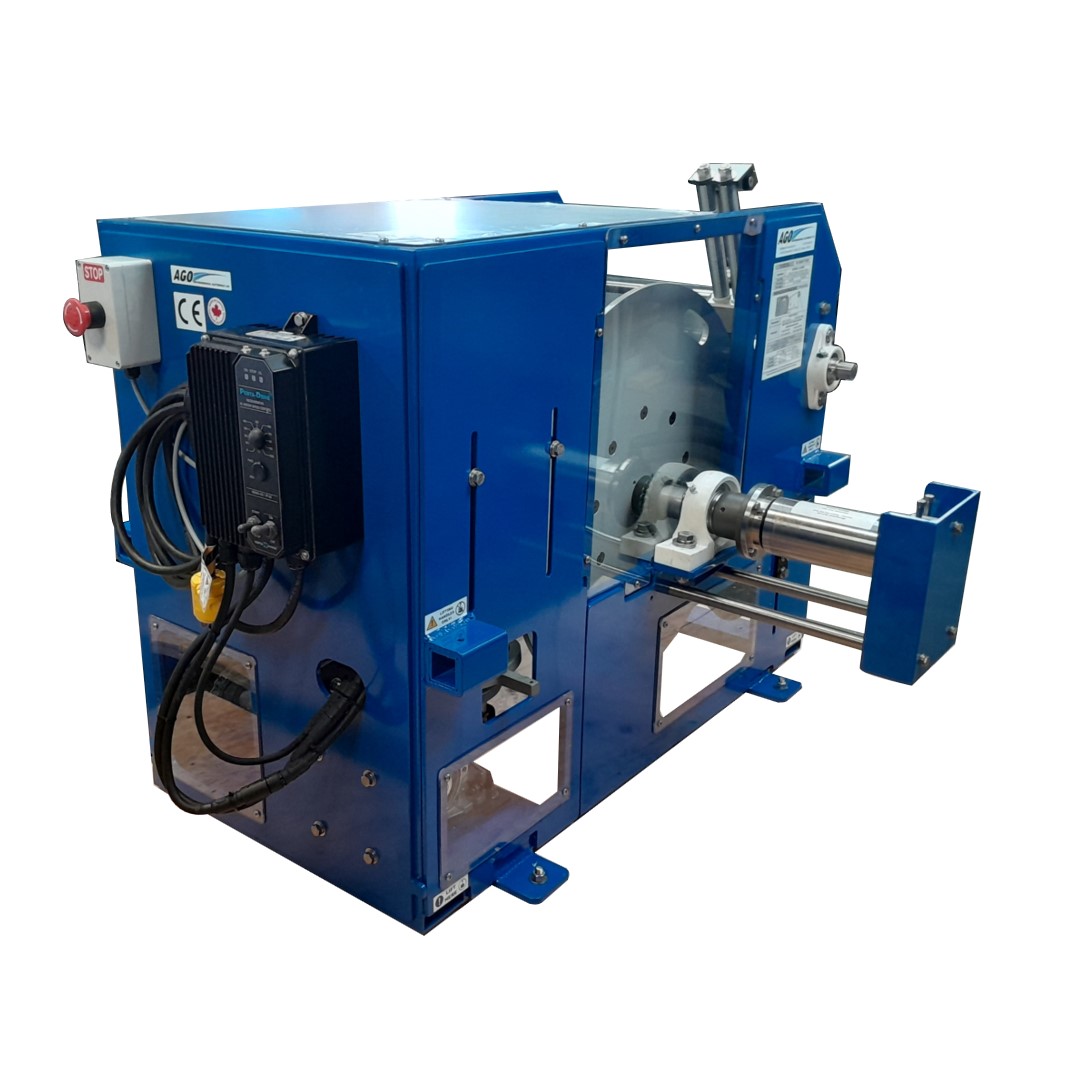

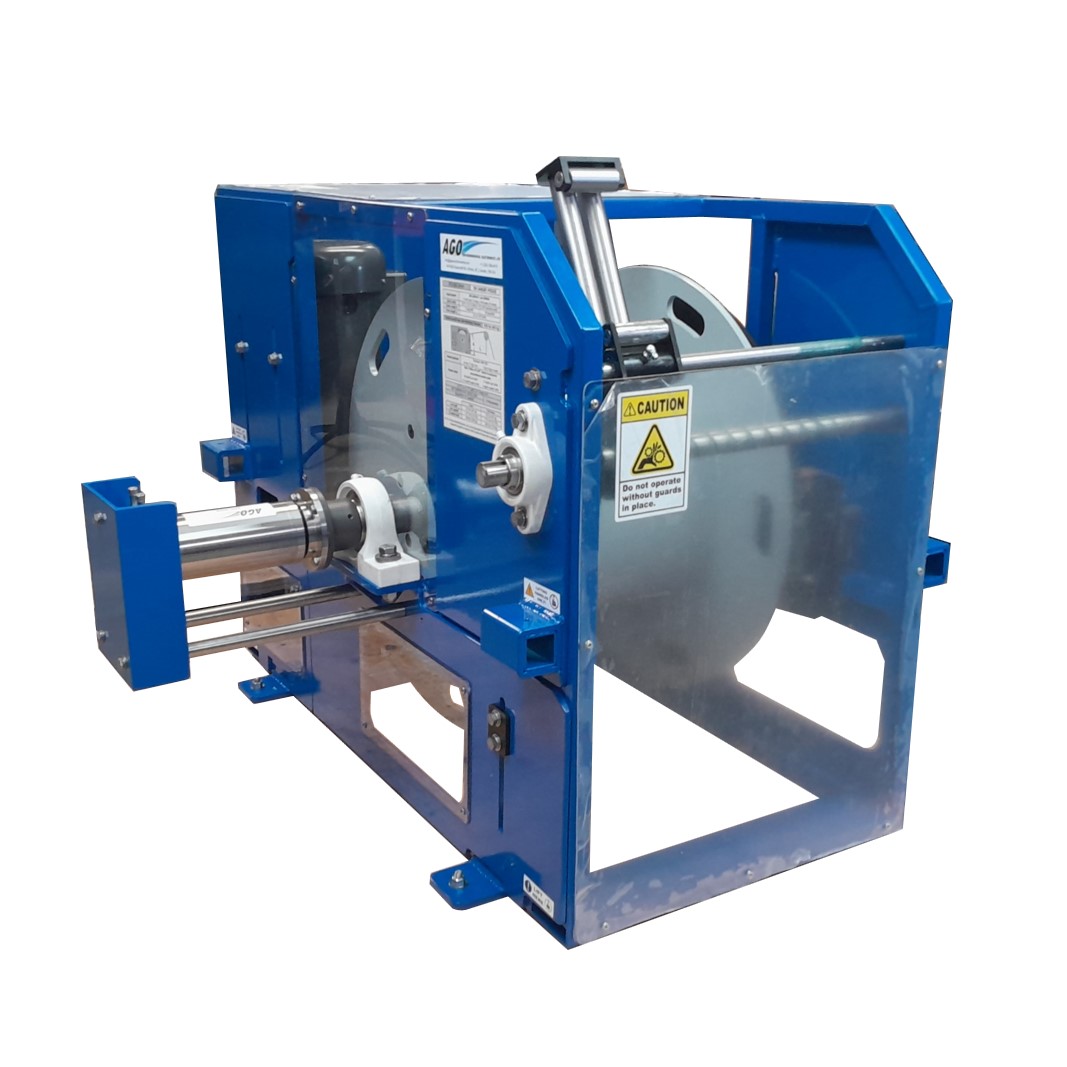

    • Levelwind to facilitate even cable winding for more predictable winch performance and better cable life
    • AGO-SR08 8-conducto slip ring with MCBH-8 connectors (for when the winch is to be used with conductor cable rather than rope)
    • Bearings with thermoplastic housings and stainless steel inserts for improved corrosion resistance and reduced weight vs the default painted cast iron housings and steel inserts

Standard specs:

Drum 12.75″ core x 12″ width x 23″ flanges
Drivetrain Nominal 2HP 1800RPM motor w/ 28.2:1 overall speed reduction and 12ft-lb electric brake
Nominal line pull  197lbs @ core
130lbs @ full drum*
Nominal line speed 1.07 m/s @ core
1.72 m/s @ full drum*
Rated application Rockland Scientific 24lb VMP-250 and up to 1000m of 6mm Dyneema rope OR 1700m of 5mm 4-conductor cable
Max tow speed w/ rated payload & cable Stopped or drifting active deployment and recovery
Input power 208-230VAC 1-ph, 50/60Hz, 2.6kW required
Nominal winch weight 320lbs **

* When loaded with rated 1000m capacity of 6mm rope.

** Sans drum cable.  Includes thermoplastic/stainless steel bearing upgrade + levelwind and AGO-SR08 slip ring add-ons.
