Pressure switching pod

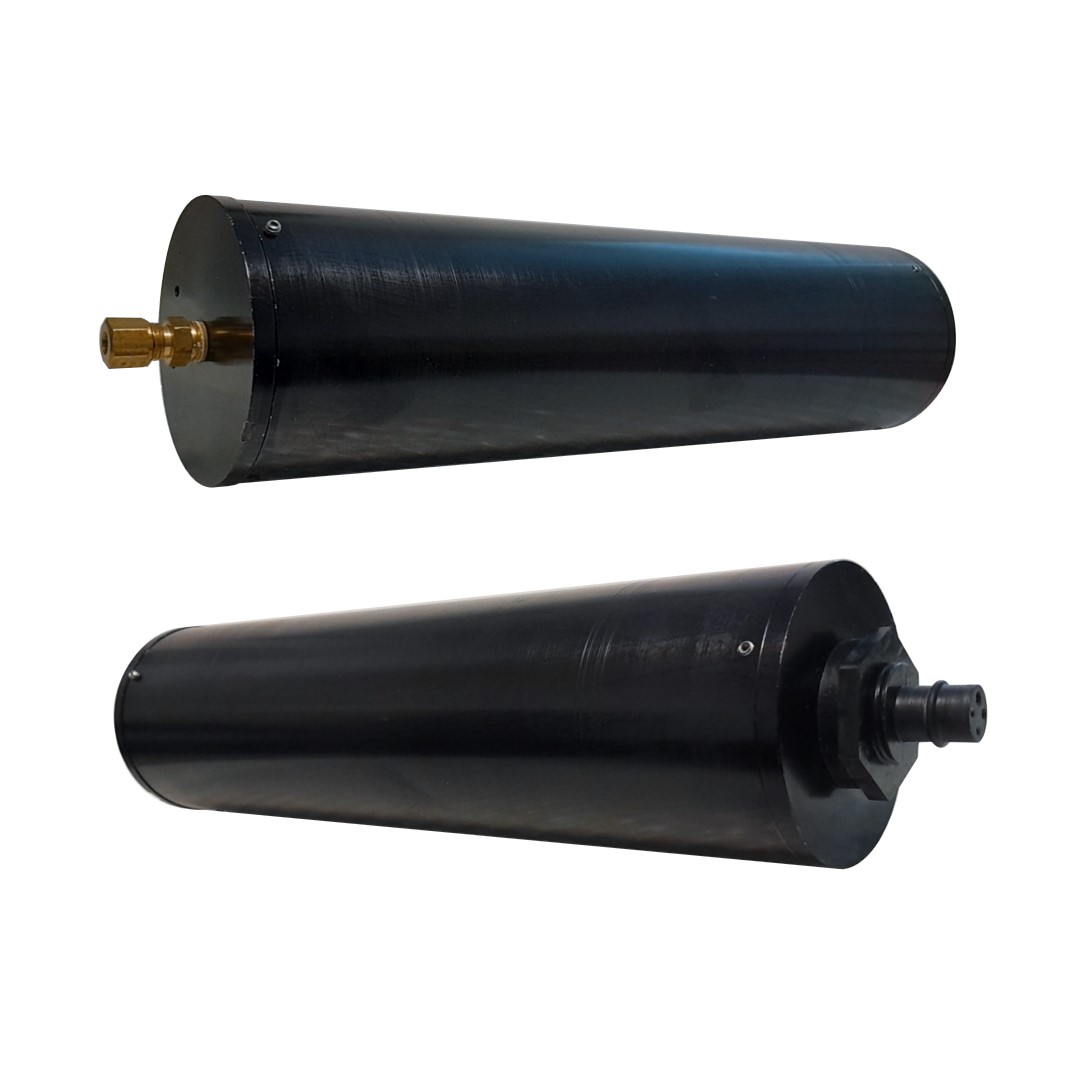

This small lightweight pod houses a pressure-change-detecting switch. The pod can be connected to equipment via its subsea bulkhead connector to switch a contact when detecting a pressure change between 4 and 50 psi (~3 to 34m depth change).
QTY available: 1 in stock
General specifications:
| Rated max use depth |
680m |
| Material | Anodized aluminum 6061-T6 |
| Weight |
2.5 lbs |
| Nominal outside dimensions (not including end cap connectors) |
2.5″ OD 10.5″ L |
| Application | Pressure-change-detection and switching |
| Output connector | VSG-4-BCL (mates to VMG-4-M w/ locking collar) |
| Output pinout |
1 = N.O. (1+3 and 2+4 are wired in parallel) |
