GeoSpectrum Technologies CSW-10 winch
The GeoSpectrum Technologies CSW-10 is purpose-built for integration into GeoSpectrum’s Portable Acoustic Target (PAT) launch-and-recovery rig. It is not sold as a standalone winch.
Special features on this winch include:
-

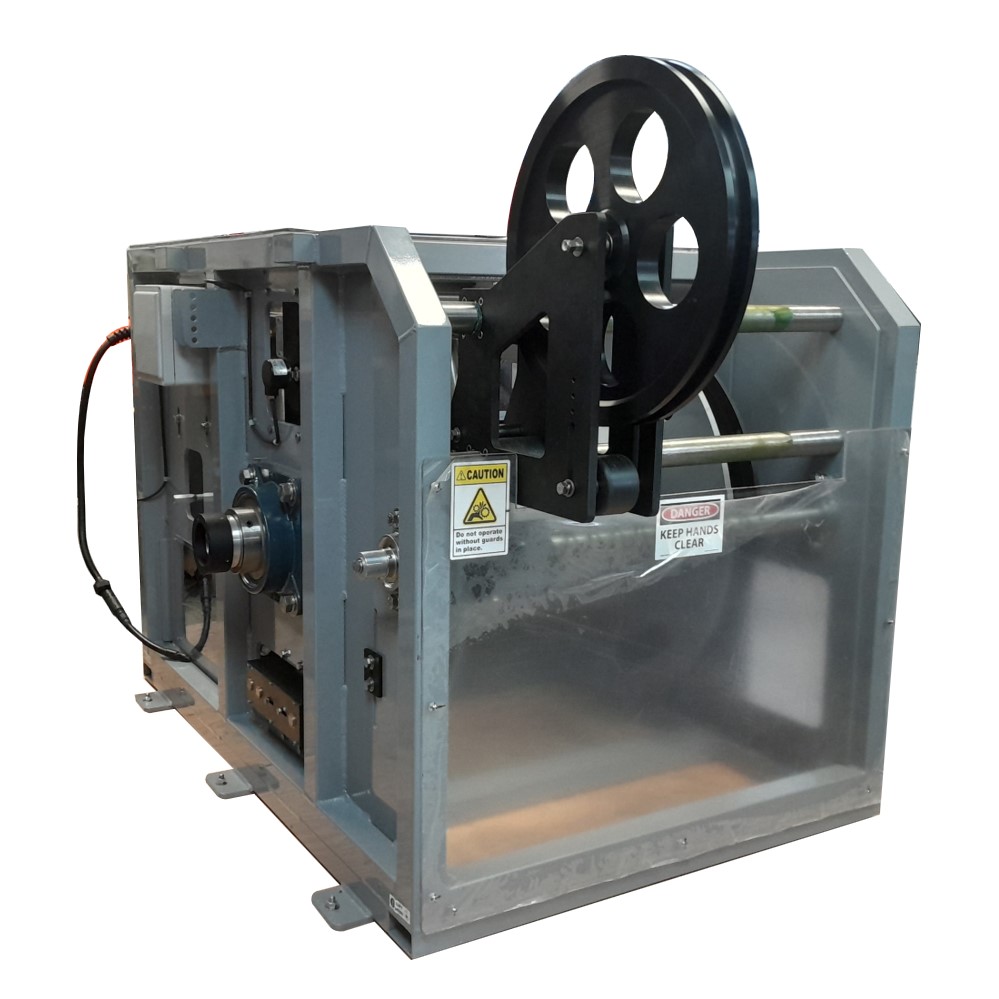

- Levelwind-mounted sheave to facilitate using the winch in close proximity to the PAT rig’s A-frame sheave
- Drum-driven encoder and PLC integrated into the eletrical cabinet for calculating and displaying deployed cable length and line speed
- Cable payout limits to prevent excessive payout or pay-in
- “Dual control” with operator controls toggleable between local winch-mounted joystick and 50m wired remote “belly pack” controller with joystick and secondary cable payout display PLC

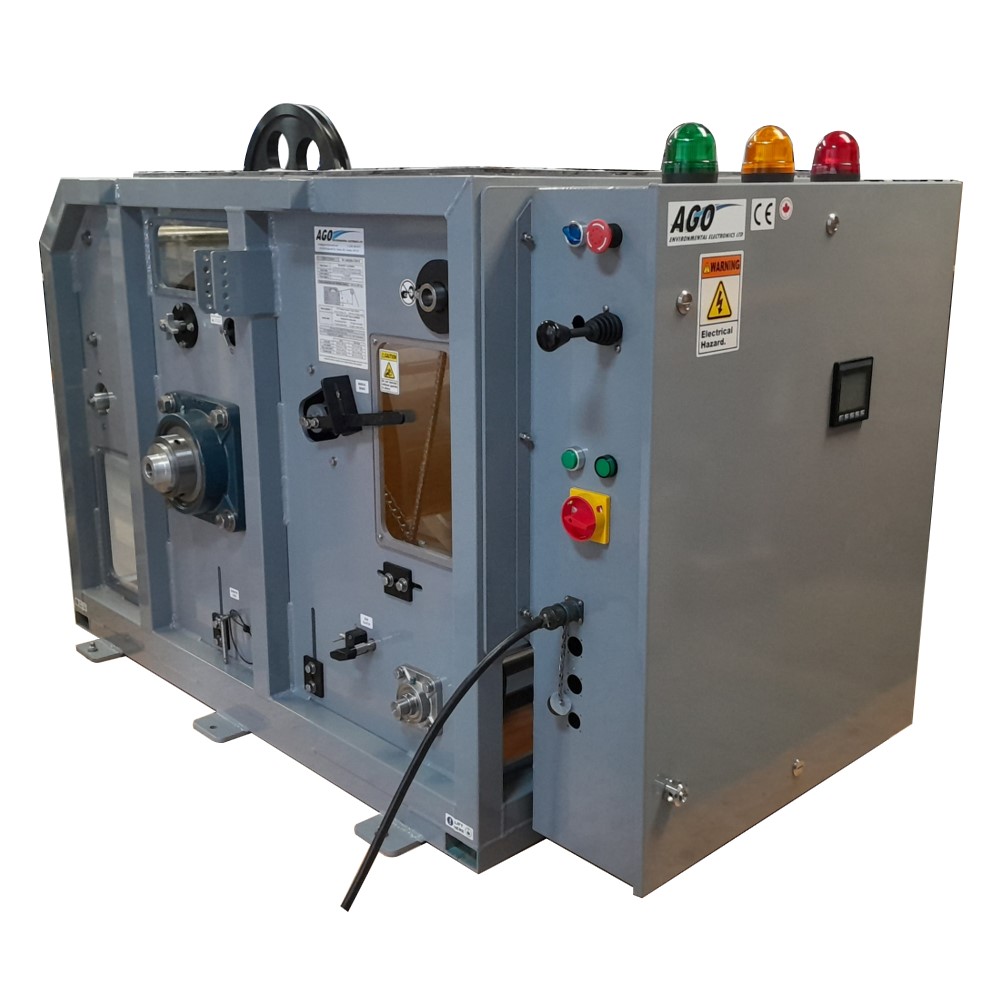

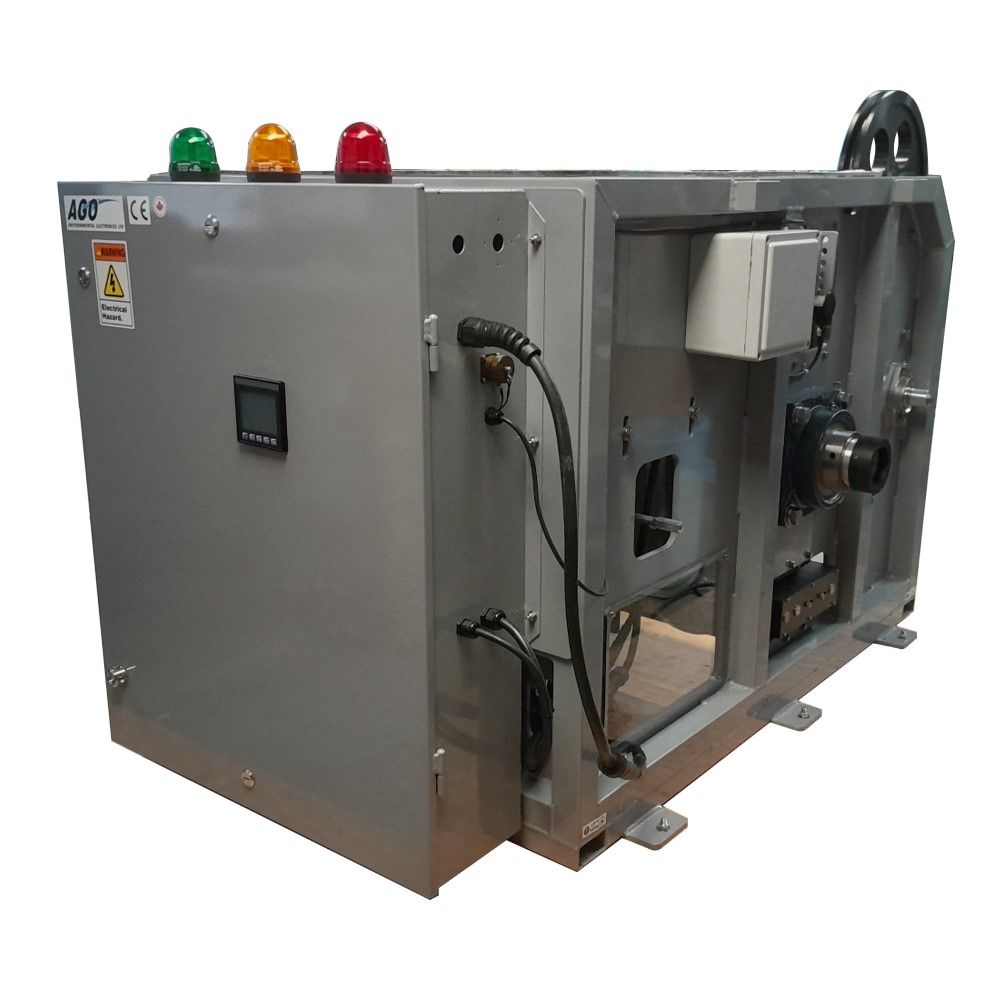

- Expanded electrical cabinet with extra room for GeoSpectrum to mount their own electronics for the LAR rig
- Friction slip clutch to automatically slip and disengage drivetrain when loads exceed winch’s capability range
Standard specs:
| Drum | 16″ core x 20.5″ width x 30″ flanges |
| Drivetrain | Nominal 3HP 1800RPM motor w/ 108:1 overall speed reduction and 25ft-lb electric brake |
| Nominal line pull | 850lbs @ core 616lbs @ full drum* |
| Nominal line speed | 0.36 m/s @ core 0.51 m/s @ full drum* |
| Rated application | GeoSpectrum Technologies 291lb Portable Acoustic Target and up to 300m of 0.59″ GTI armoured cable |
| Max tow speed w/ rated payload & cable | 4 knots during active deployment and recovery 8 knots when winch is holding load with electric brake |
| Input power | 208-230VAC 1-ph, 50/60Hz, 2.52kW required |
| Nominal winch weight | 985lbs ** |
* When loaded with rated 300m capacity of GeoSpectrum 0.59″ cable
** Sans drum cable, GTI slip ring and electrical enclosure addtions, and GTI LAR platform
