Geonics Borehole Winch (Refurbished)

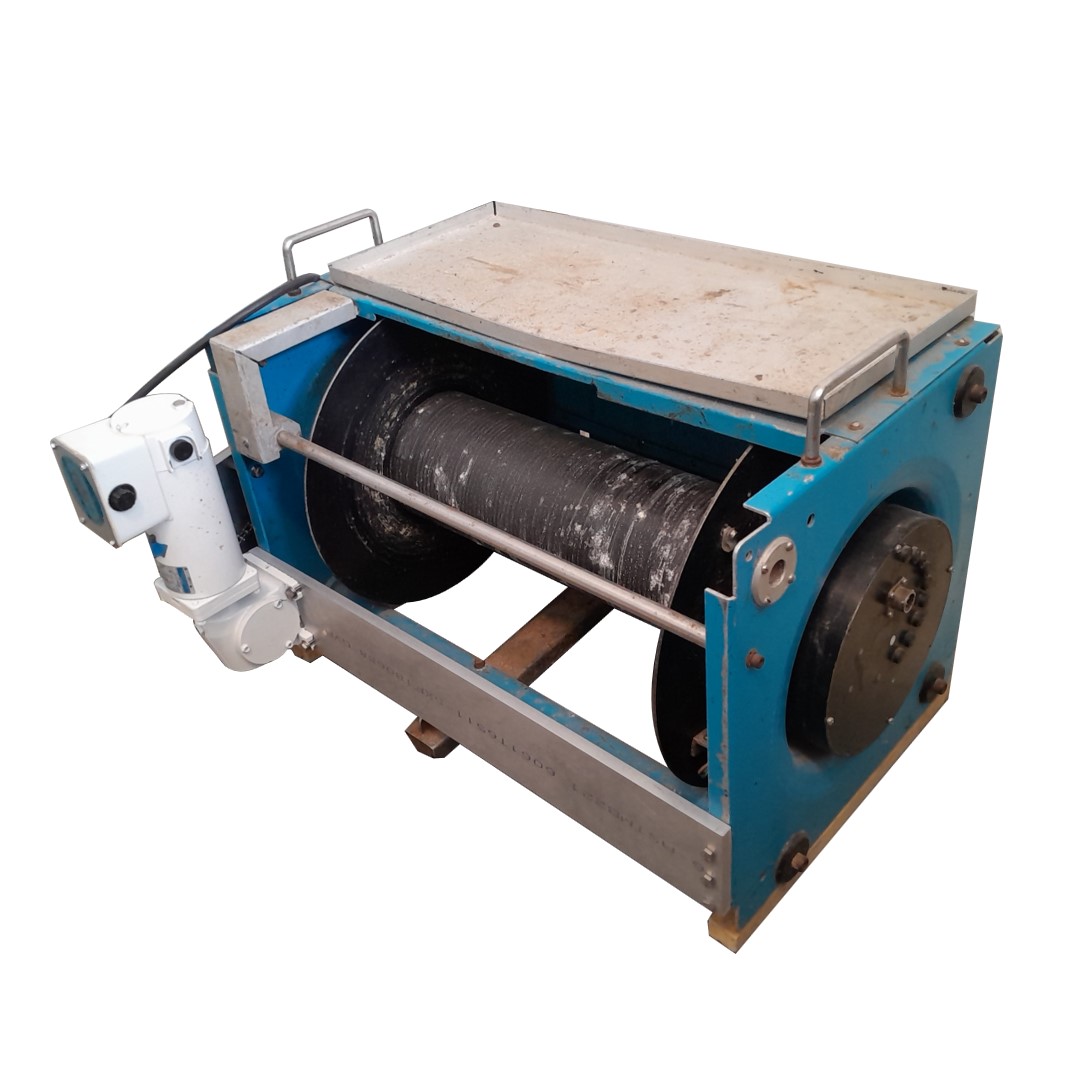

At A.G.O., we value repair culture and giving old equipment a second life.  This used vintage Geonics borehole winch has been restored to working order and outfitted with a small electric motor.

It is completely assembled and ready for purchase as-is.

This winch offers budget-friendly pricing that reflects the motor upgrade costs only.  We accuired the base winch through equipment liquidation and are passing the savings directly to you.  Contact us for pricing.

Download datasheet

Nominal specs:

Please refer to the winch overview datasheet for examples of applications that it is rated to handle.

Drum 5.875″ core x 18″ width x 15″ flanges
Drive train Nominal 1/4HP 125RPM motor w/ 3.23:1 sprocket speed reduction
Approximate line pull 82lbs @ core
37lbs @ full drum*
Approximate line speed 0.31 m/s @ core
0.66 m/s @ full drum*
Nominal input power 110VAC 1-ph
Overall dimensions 29″W x 27″L x 20″H
(74cmW x 69cmL x 51cmH)
Approximate winch weight

74 lbs **
(33.5 kg **)

* Full drum = 1″ free flange
** Sans drum cable
