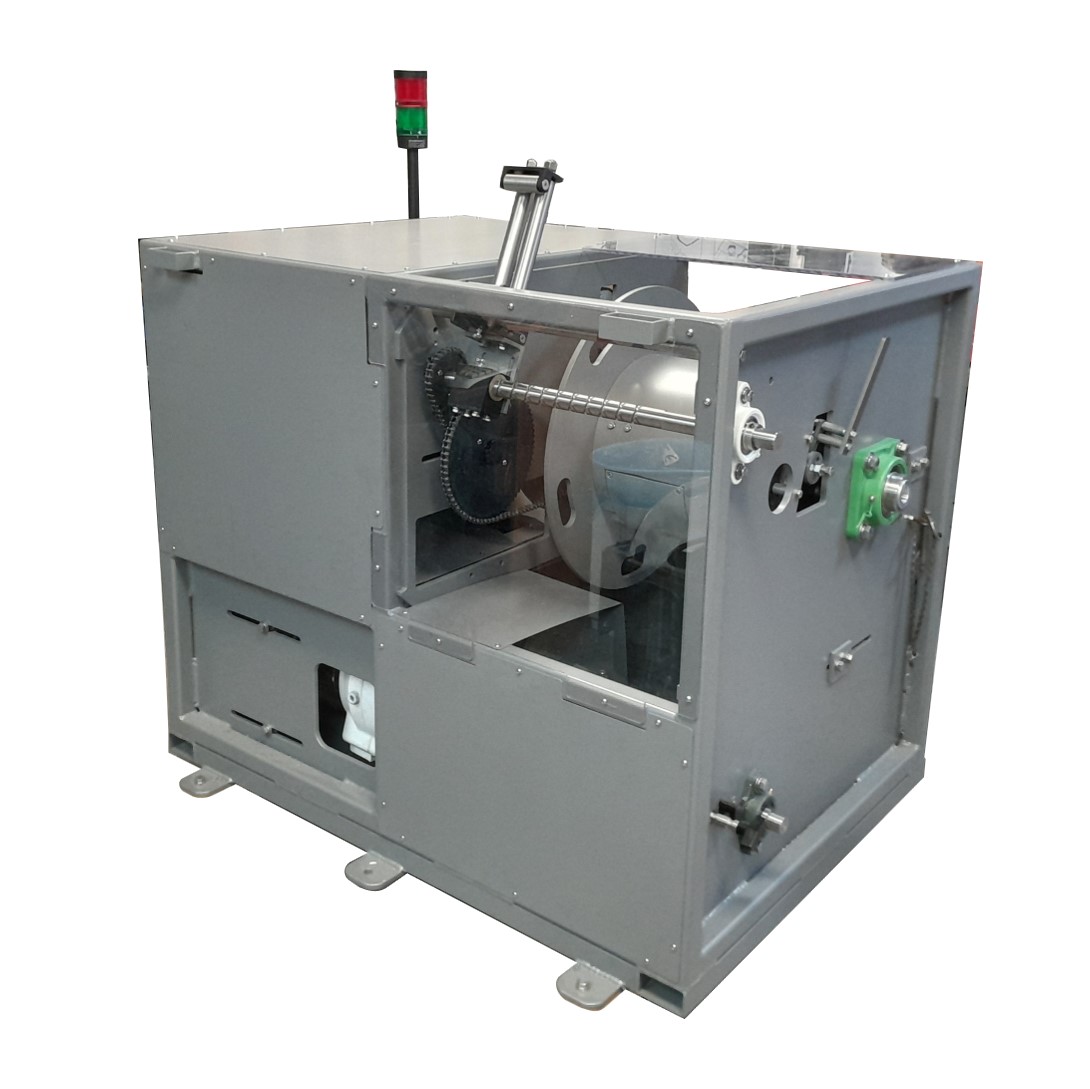

"Arctic Fox" 3HP enclosed winch

The Arctic Fox is a powerful, fast, fully-enclosed winch ideal for marine operations like side scan sonar or sound velocity profiling.  It is completely assembled and ready for purchase as-is.

Features on this winch include:

    • Mechanically-driven level wind system for cable management (currently geared for use with cables ~0.322-0.33″ (8.18-8.41mm) in diameter)
    • Bearings with thermoplastic housings and stainless steel inserts
    • Dog clutch for disengaging the powered drive train for freewheeling payout or manual recovery
    • Stack-light status beacons (red = stopped, green = on and running)
    • Slip ring
Download Arctic Fox datasheet

Optional features available for this winch include:

    • New “Phoenix” A.G.O.-built winch PLC system that can be optionally configured to offer:
      • Wire payout metering (via drum-driven wire counter system)
      • Remote monitoring of wire payout data via a network-connected computer
      • Remote control of the winch via a network-connected computer

Nominal specs:

Please refer to the winch overview datasheet for examples of applications that it is rated to handle.

Drum 12″ core x 12″ width x 21″ flanges
Drive train Nominal 3HP 1800RPM motor w/ 38:1 overall speed reduction
Approximate line pull 530lbs @ core
330lbs @ full drum*
Approximate line speed 0.75 m/s @ core
1.15 m/s @ full drum*
Input power 220VAC 1-ph

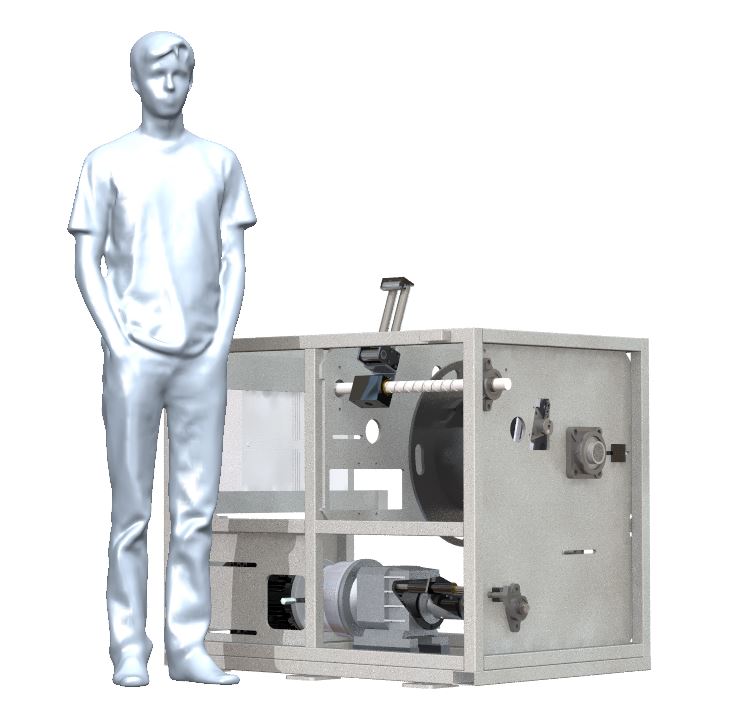

Overall dimensions 52″W x 37″L x 37″H
(132cmW x 94cmL x 94cmH)
(height does not include stack-lights or level wind rollers)
Approximate winch weight 550lbs **

* Full drum = 1″ free flange
** Sans drum cable
