AGO-HFRJ coax slip rings

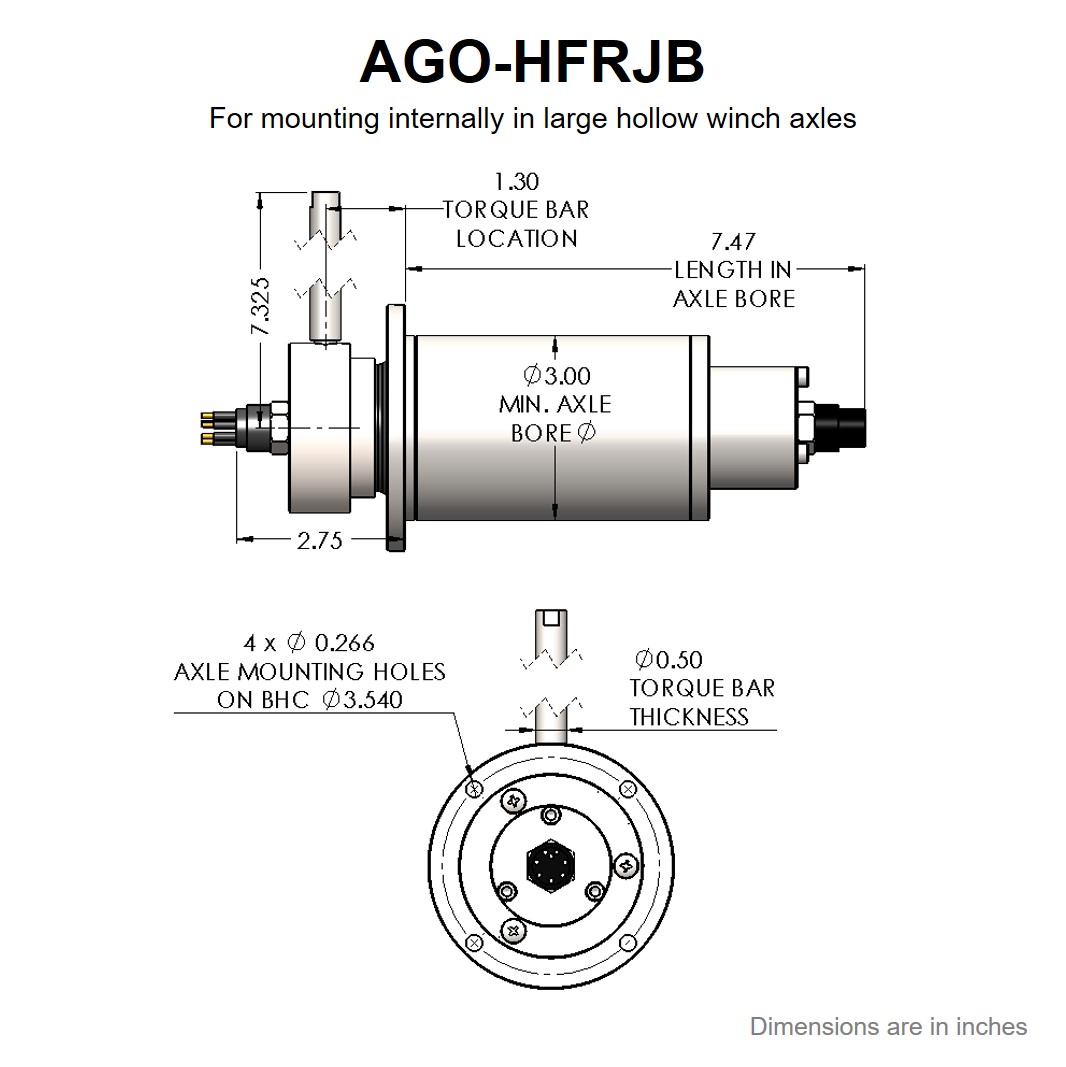

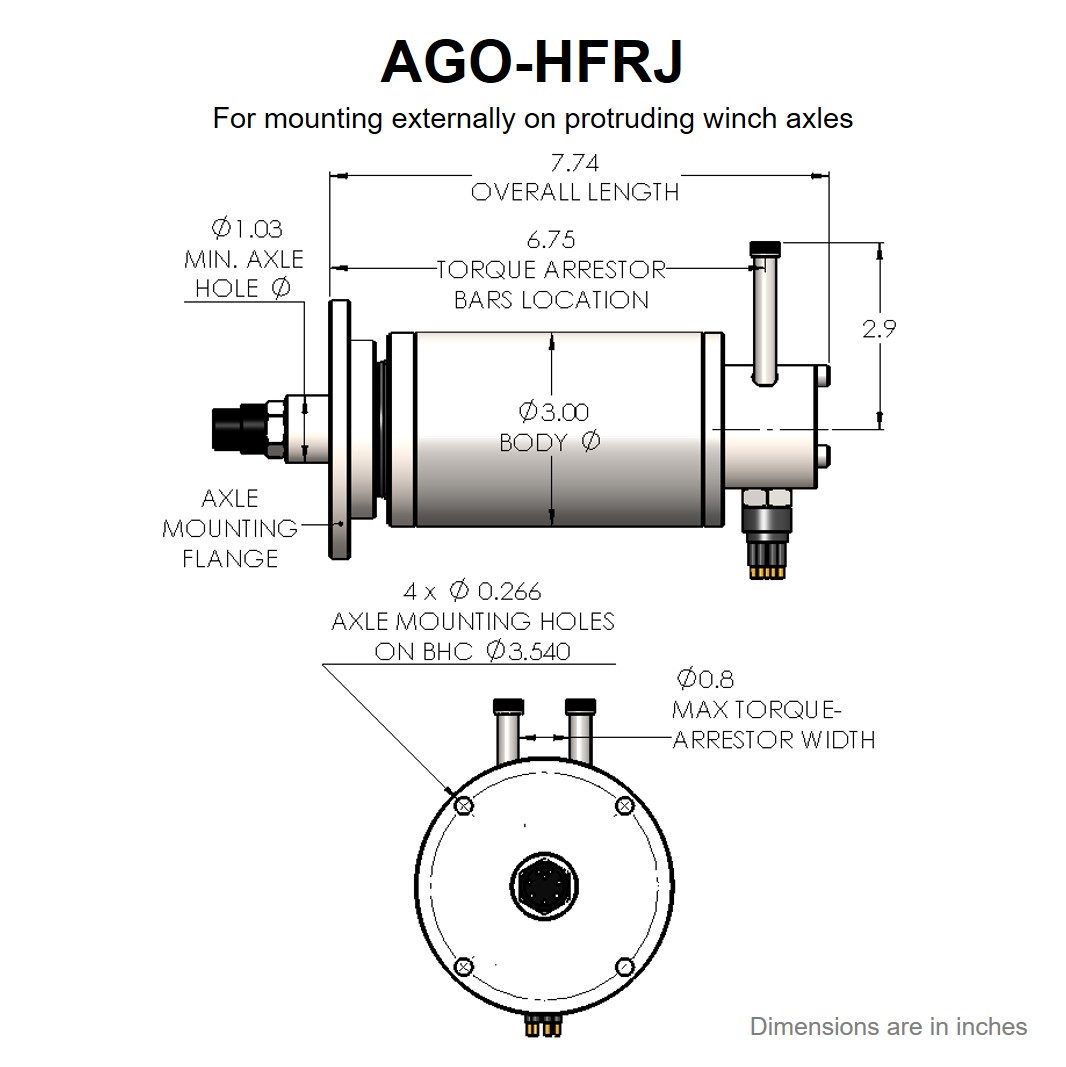

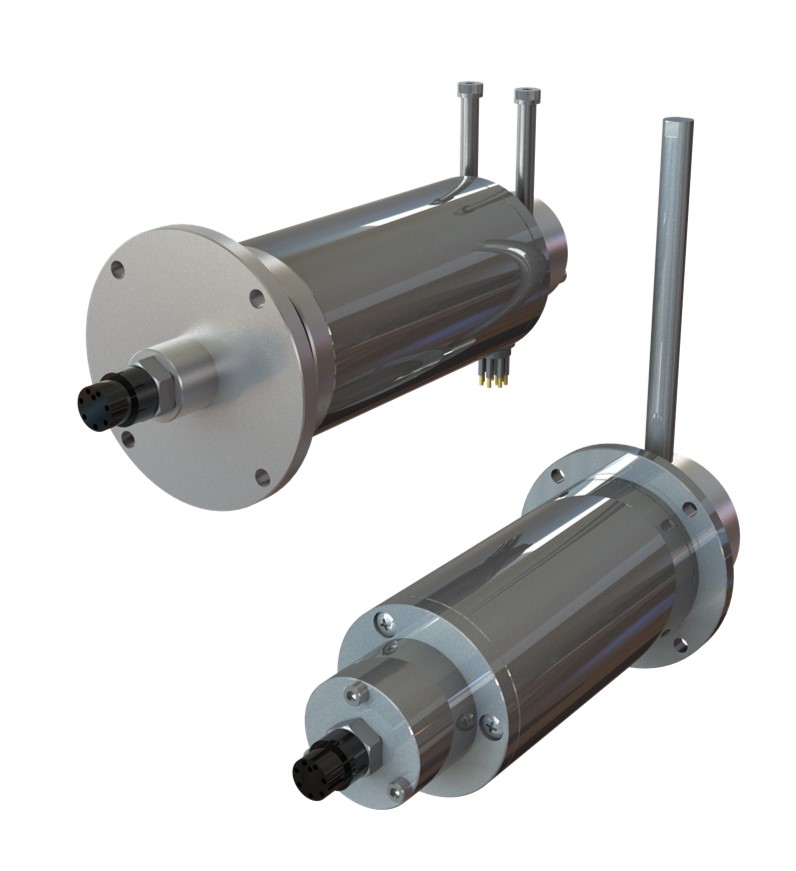

The AGO-HFRJ coax slip ring model comes in both an external flange mount (HFRJ) and an in-bore configuration (HFRJB). It is a robust slip ring assembly with a stainless steel splash-proof housing, internal coax high-frequency rotary joint slip ring module, and MCBH-8 connectors.
General specs
# of conductors: 1 coax pair

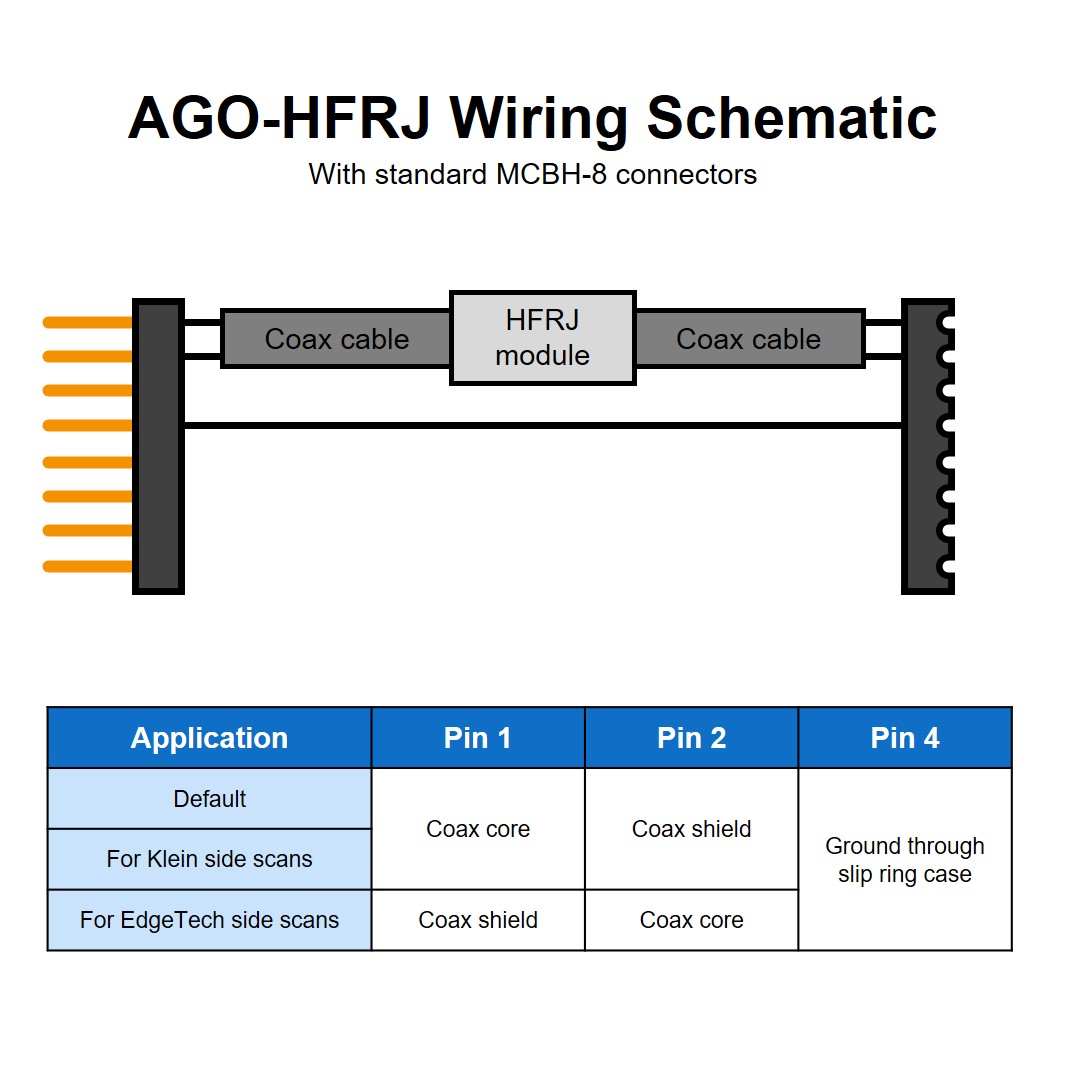

Standard connectors: MCBH-8F (drum side), MCBH-8M (deck side)
Frequency range: DC to 18 GHz
Max VSWR: 1.4:1
Max input power: 30W @ 12.4-18 GHz
Max peak power: 3kW
Working temperature range: -40°C to +70°C (-40°F to +158°F)
Weight: 4.5kg (10lbs)
